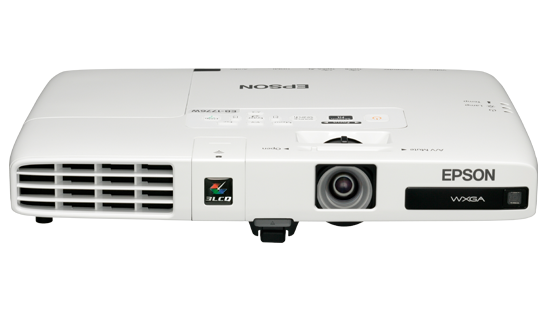

| MODEL NUMBER | EB-1776W |
|---|
| Projection Technology |
RGB liquid crystal shutter projection system (3LCD) |
| Specifications of Main Parts |
|
| LCD: |
|
Size
|
0.59" with MLA (D8) |
Native Resolution
|
WXGA |
| Projection Lens: |
|
Type
|
Optical zoom (Manual) / Focus (Powered) |
F-Number
|
1.58 - 1.7 |
Focal Length
|
13.52mm - 16.22mm |
Zoom Ratio
|
1 - 1.2 |
Throw Ratio
|
1.04 - 1.26 (Wide - Tele) |
| Lamp: |
|
Type
|
230W UHE |
Life (Normal/Eco)
|
4,000 hours
*Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time. |
| Screen Size (Projected Distance) |
|
Zoom: Wide
|
30" - 300" [0.67m - 6.81m] |
Zoom: Tele
|
30" - 300" [0.80m -8.18m] |
Standard size
|
60" screen 1.35m - 1.62m |
| Brightness |
|
| White Light Output (Normal/Eco) |
3,000lm / 1,700lm |
| Colour Light Output |
3,000lm |
| |
*Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118. |
| Contrast Ratio |
2,000:1 |
| Internal Speaker (s) |
|
| Sound Output |
Monaural: 1W X 1 |
| Keystone Correction |
|
| Vertical / Horizontal |
± 45° / ± 30° (Zoom: Tele) |
| Auto Keystone Correction |
Yes (Horizontal & Vertical)
Real Time
Distance: 68cm - 226cm
Vertical / Horizontal: ± 30° / ± 20°
|
| Connectivity |
|
| Analog Input |
|
D-Sub 15 pin
|
1 (Blue) |
Component
|
D-sub 15pin Blue molding (in common with Analog RGB connector) |
Composite
|
RCA (Yellow) x 1 |
| Digital Input |
|
HDMI
|
1 |
| Audio Input |
|
Stereo Mini Jack
|
1 |
| Others |
|
USB Type A
|
1 (USB memory / ELPDC06 Document Camera) |
USB Type B
|
1 (3-in-1 USB Display) |
| Network |
|
Wireless
|
Yes (ELPAP07) |
| Wireless Specifications |
|
| Supported Speed For Each Mode |
IEEE 802.11b: 11 Mbps*
IEEE 802.11g: 54 Mbps*
IEEE 802.11n: 130 Mbps*
* Maximum speed and range is achievable when used with same enhanced mode technology.
Actual data rates, features and performance may vary depending on your computer system, the environment
and other factors. |
| Wireless LAN Security |
WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES) |
| Operating Temperature |
5°C - 35°C < 41°F - 95°F> (20% - 80% humidity) |
|
Operating Altitude
|
0m - 2,286m <0ft - 7,500 ft> (over 1,500m / 4,921ft: with High altitude mode) |
|
Direct Power On / Off
|
Yes |
|
Start-Up Period
|
Less than 7.2 seconds, Warm-up period: 30 seconds |
| Cool Down Period |
Instant off or 0 second |
|
Air Filter
|
|
Type
|
Normal |
Maintenance Cycle
|
2,000H |
| Power Supply Voltage |
100 - 240 V AC +/- 10%, 50/60 Hz |
| Power Consumption (220 - 240V) |
|
Lamp On (Normal / Eco)
|
304W / 203W |
Standyby (Network On / Off)
|
7.7W / 0.44W |
| Dimension Excluding Feet (D X W X H) |
210mm x 292mm x 44mm |
| Weight |
Approx. 3.77lbs. / 1.71kg |
| Fan Noise (Normal / Eco) |
40 dB / 30dB |
| Back of the Projector |
|
 |
