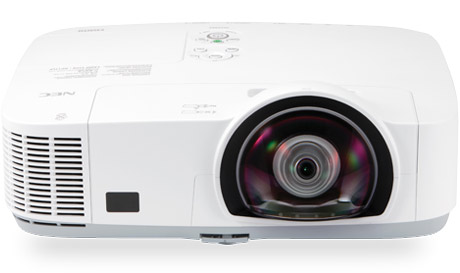

NEC M300XS 3000 Lumens, 2000:1 Contrast, 4.0 kg, 2 cm 3 LCD Projector

Product Specifications

Image Calculator

Optical

 Display Technology0.63" LCD w/ MLA

Light Output(Lumens)3000 normal / Eco = approx. 75% of normal mode

Resolution

NativeXGA 1024 x 768

MaximumUXGA 1600 x 1200

Contrast Ratio (up to)2000:1

Lamp Type230W AC / 170W eco

Lamp Life (up to)4000 hours normal / 5000 hours eco

Screen Size (diagonal)60 to 110 in. / 1.52 to 2.79m

Throw Ratio0.48 to 1

Projection Distance1.9 to 3.6 ft. / 0.57 to 1.1m

Projector Angle37.3° tele / 38.6° wide

Lens

Zoom1.2

FocusManual

F number, fnumberF=2, f=6.4mm

Keystone CorrectionAutomatic or manual +/- 20°

Signal Compatibility/Connectivity

Scan Rate

Horizontal15-100 kHz

Vertical50-120 Hz

Supported Video StandardsNTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

SD/HD Video Signal Compatibility480i, 480p, 576i, 576p, 720p, 1080i, 1080p, Y/Cb/Cr component (with optional adapter – ADP-CV1E)

PC Signal CompatibilityVGA, SVGA, XGA, SXGA, SXGA+, UXGA

Macintosh CompatibilityYes

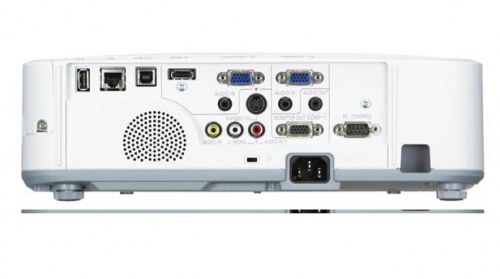

Input/Output Terminals

RGB1(analog)VGA 15-pin D-sub

RGB2(analog)VGA 15-pin D-sub

RGB3(digital)HDMI
