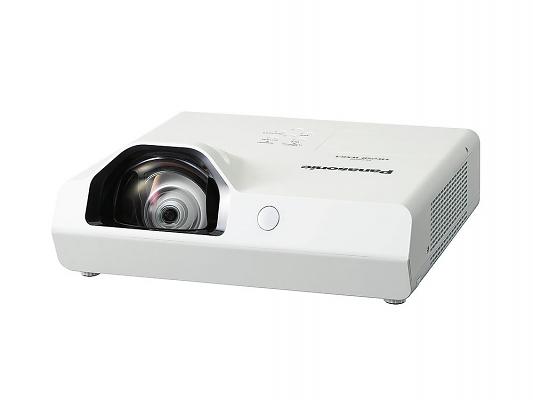

PanasonicPT-TX400 Brightness: 3500 lumens Resolution: 1024 x 768 (XGA) Extra short throw lens, display 80" diagonal image from 75cm away from the screen

LCD PanelDisplay methodTransparent LCD panel (x 3, R/G/B)

Drive methodActive matrix method

Panel size16 mm (0.63 in) diagonal (4:3 aspect ratio)

Pixels786,432 (1,024 x 768) x 3, total of 2,359,296 pixels

LensFixed (0.46:1 throw ratio), manual focus F=1.8, f=6.08 mm

Lamp230 W x 1

Lamp replacement cycle4,000 h/5,000 h/8,000 h*1 (Lamp power: Normal/Eco1/Eco2)

Screen size (diagonal)1.27-2.54 m (50-100 in), 4:3 aspect ratio

Brightness3,500 lm

Center-to-corner uniformity ratio *280%

Contrast5,000:1 (all white/all black)

(RGB signal input, Color mode: Dynamic, Lamp power: Normal)

Resolution1,280 x 800 pixels

TerminalsHDMI INHDMI 19P x 1 (compatible with HDCP, Deep Color)

480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p,

1080/50p, 1080/24p, 1080/25p, 1080/24sF, 1080/30p,

VGA (640 x 480)-WUXGA (1,920 x 1,200),*4

audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

COMPUTER IN 1D-sub HD 15-pin (female) x 1 [RGB/S-Video/YPB(CB)PR(CR)/Scart RGB]

COMPUTER IN/OUT 2D-sub HD 15-pin (female) x 1 [RGB/Monitor output] (Input/output switching)

VIDEO INPin jack x 1

SERIAL IND-sub 9-pin (female) x 1 for external control (RS-232C compliant)

AUDIO  INM3 x 2 (L-R x 2)

AUDIO OUTM3 x 1 (L-R x 1) for output (variable)

SERIAL IND-sub 9-pin (female) x 1 for external control (RS-232C compliant)

LANRJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX,

compliant with PJLink™)

USB AUSB type-A (for the USB Memory Viewer) x 1

USB BUSB type-B (for the USB Display) x 1

Cabinet materialMolded plastic (PC)

Dimensions (W x H x D)335 mm x 134.1 mm*5 x 329 mm

WeightApprox. 4.0 kg (8.8 lbs) (tentative)

Noise levelTBD (Lamp power Normal), 29 dB (Lamp power Eco)

Operating TemperatureNormal use: 5 °C-40 °C (41 °F-104 °F) [at altitudes less than 1,400 m (4,500 ft)]

5 °C-35 °C (41 °F-95 °F) [at altitudes of 1,400-2,700 m (4,500-8,800 ft)]

Operating humidity20%-80% (no condensation)

Supplied accessoriesPower cord x 1*7, wireless remote control unit x 1,

batteries (AAA/R03/LR03 type x 2), computer cable x 1,

Software CD-ROM (Multi Projector Monitoring & Control Software)
