Optoma EH503 DLP ความสว่าง 5200 ml Full HD 1080P Contrast 2000:1

Optoma EH503 DLP ความสว่าง 5200 ml Full HD 1080P Contrast 2000:1
Optoma EH503 DLP ความสว่าง 5200 ml Full HD 1080P Contrast 2000:1 thumbnail 1Optoma EH503 DLP ความสว่าง 5200 ml Full HD 1080P Contrast 2000:1 thumbnail 2
หมวดหมู่ OPTOMA
ราคา 169,000.00 บาท
สถานะสินค้า พร้อมส่ง
แก้ไขล่าสุด 29 พ.ค. 2560
ความพึงพอใจ ยังไม่มีความคิดเห็น
จำนวน
ชิ้น
หยิบลงตะกร้า
Share
Scan this!


โปรเจคเตอร์ ราคาถูกสุด ส่งสินค้าเร็ว ฟรีทั่วประเทศ

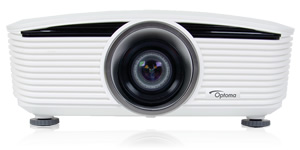

Optoma EH503
ความสว่าง 5200 Ansi
ความละเอียด 1080P (Full HD)
Contrast เท่ากับ 2,000
การรับประกันตัวเครื่อง 2 ปี หลอดภาพ 1 ปี หรือ 1,000 ชม.


DOWNLOAD PDF OPTOMA EH503


EH503 Specification

Display Technology DLP™ Technology by Texas Instruments, 0.65” 1080p, DC3,Type A chip
Native Resolution 1080p 1920 x 1080
Brightness1 (Bright Mode) 5200 ANSI Lumens
Contrast 2000:1
Lamp Life2 Eco/Bright 3500/1500 (hrs)
Lens Options Short: 0.77:1 (Fixed)
Semi Short: 1.1 - 1.3:1 (1.18x zoom)
Standard: 1.54~1.93:1 (1.25x zoom)
Long: 1.93~2.89:1 (1.5x zoom)
Extra Long: 3.0 - 5.0 (1.67x zoom)
Throw Ratio 3 0.77 ~ 5.0 "Lens dependent"
Zoom Type Dependent upon lens
Lens Shift Max. Lens Shift -20 to +60% V, ±5% H (Manual)
I/O Connectors HDMI (1.4a 3D support), DVI-D, DisplayPort, 5BNC, Component Video, 2 x VGA (RGB/YPbPr), S-Video, Composite, 5 x Audio In (RCA/3.5mm), Audio Out 3.5mm, VGA Out, RJ45, RS232, USB (Remote Mouse), +12v Trigger, Wired Remote, 3D-Sync
Speaker 3
Audio 3W
Keystone Correction ± 40° Vertical
Weight (kg) 8.6 (without lens)
Dimensions (W x D x H) (mm) 431 x 341 x 183
Aspect Ratio 16:9 Native, 16:10/4:3 Compatible
Projection Screen Size Dependent upon lens
Projection Distance Dependent upon lens
Projection Lens 5 x lens Options "no lens supplied as standard"
Uniformity 85% (centre)
Computer Compatibility HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Video Compatibility PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
3D Support Mandatory HDMI 1.4 3D formats,
120Hz frame sequential (up to 720p)
3D Viewing Requires 3D Glasses - supplied separately.
Horizontal Scan Rate 15kHz to 91kHz
Vertical Scan Rate 24Hz to 85Hz (120Hz for 3D playback)
Displayable Colours 16.7 Million
Noise Level (Eco mode) 37dB
Power Supply 100 – 240V AC @ 50 – 60Hz
Power Consumption 460W (max) bright mode,
Lamp Type 370W
Operating Conditions 5 ~ 40˚C, max. humidity 85%, max. altitude 3000m
Operating Temperature 0 ~ 750m, 5 ~ 45˚C
750m ~ 1500m, 5 ~ 35˚C
1500 ~ 3000m, 5 ~ 30’C
Security 4-digit PIN code, Kensington Lock port, Security Bar
On Screen Display 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi, Arabic
Remote Control Infra-red remote control, Multiple IR code sets for controlling multiple units, Wired connection sup
Standard Accessories VGA cable, AC power cord, Infra-red remote control, Batteries x 2, Quick start card, WEEE card, Warranty card
Optional Wireless Yes
360’ Operation Not supported
Portrait Mode Not supported
Conformances CE, TUV-GS, CB
RoHS RoHS and WEEE
Features "5 x Optional Lens [Short/STD/Long], Full Lens Shift, Crestron RoomView®, PJ-Link

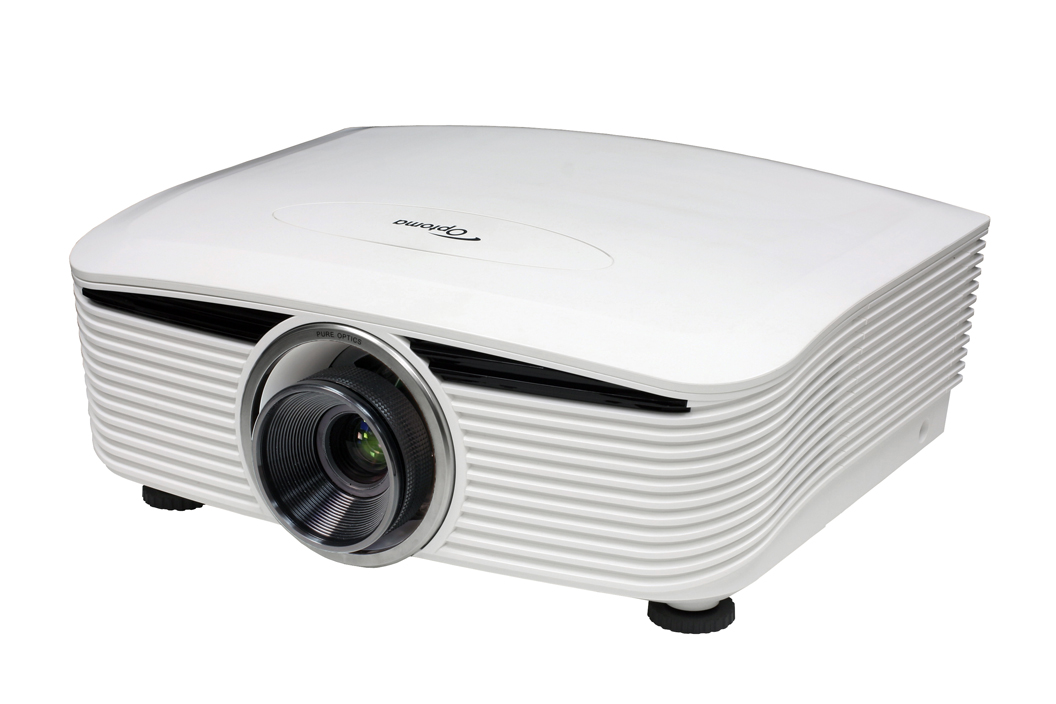

EH503
Spectacular image quality, outstanding brightness and ultimate reliability
  • 5200 lumens, 1080p Resolution
  • Installation flexibility – Lens shift, interchangeable lenses, off-axis short throw option
  • Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
  • Powerful Image Blending Tools - 3-axis colour matching system and 10x lamp-power steps
  • Advanced features – Wired Remote, Full 3D Support and DICOM simulation
The EH503 is a product designed exclusively for demanding professional applications.

1080p and 5200 lumens delivers bright crystal clear images with ultimate reliability, while 24/7 operation ensures that this is a projector on which you can rely.

The dust-sealed, filter free design prevents dust and dirt from affecting the system ensuring optimal image quality with minimal maintenance.

Full lens shift combined with the multiple lens options provide installation flexibility for simple, trouble free installations.


Image Quality

Superb image quality is at the heart of every ProScene product design. At every step, commencing with the incredibly reliable, high resolution 1080p DLP® chip where the image is initially created, via the UHP lamp pulsing technology that fine tunes the colour to exacting standards, through to the precision optics to focus the image on a screen, accuracy and integrity of the image are paramount.

ProScene chose DLP® technology for its image quality and unmatched reliability. The reflective nature of DLP® micro-mirror technology provides highly efficient bright images with great contrast whilst maintaining precise colour accuracy and natural, real-world colour reproduction. For demanding professional applications, the proven reliability of DLP® technology makes it the obvious choice.

DLP® Technology

DLP® technology from Texas Instruments® is widely recognised and acclaimed for its unmatched reliability and long lasting image performance. When combined with high brightness and native contrast ratios, it becomes the obvious choice for demanding applications. Independent testing has proven DLP® to be the most reliable of projector technologies. Whilst other technologies may show image quality decline after only a few thousand hours, DLP® technology can remain unchanged over hundreds of thousands of hours.

Stunning Image Quality

Full HD 1080p technology delivers impeccable image quality associated with the best digital cinema performance around the world. Digital HDMI or DVI signals create a true digital projection system that produces a spectacular High Definition display. This unprecedented combination ensures natural, life-like images with crystal clarity.
XGA Resolution
1080p Resolution

UHP lamps

The 370W UHP lamp provides the highest possible luminance, the essential prerequisite of all highly efficient projectors.

These lamps have outstanding brightness, stay brighter for longer, and provide an optimal colour spectrum. In addition, the lamp drivers are specifically tuned for the lamps, ensuring not only optimum operating conditions for every situation, but also provide sophisticated lamp pulsing modes and the assurance that colour can be fine-tuned according to the application.

Clear, focused images

DarkChip3™ technology from Texas Instruments produces a stunning 2000:1 contrast ratio for pin sharp graphics and crystal clear text. Crisper whites, ultra-rich blacks makes images come alive and text easier to read.


2000:1 Contrast Ratio

Amazing Colour

Watch your movies, TV shows and play games with stunning colours in any environment. Optoma projectors provides you with reliable performance suitable for any content and environment. Our home projectors are capable of reproducing the Rec.709 colour gamut, the international HDTV standard to guarantee accurate reproduction of cinematic colour exactly as the director intended. Or more saturated colours for a punchy looking image, great for gaming and animated movies.

Flexibility

a

Installation Flexibility

To help meet the seemingly limitless challenges of ProAV installations, the EH503 provides multiple lens options with zoom and focus adjustment to ensure you can get the image size you require, while a wide lens shift range helps you get the image exactly where you want it.

All 5 optional lenses, including the 0.77:1 short throw lens can use the full lens shift range.

Full Lens Shift

1080p
Lens position: centre
Shift Range
Projector

Throw distance chart

EH503 Throw Distance
Diagonal Image Size (16:9) Short Semi-short Standard Long Extra-Long
  Fixed (m) Min (m) Max (m) Min (m) Max (m) Min (m) Max (m) Min (m) Max (m)
50” 0.85 1.22 1.44 1.70 2.14 2.14 3.21 3.32 5.53
60” 1.02 1.46 1.73 2.05 2.56 2.56 3.85 3.98 6.64
70” 1.19 1.7 2.01 2.39 2.99 2.99 4.49 4.65 7.75
80” 1.36 1.95 2.3 2.73 3.42 3.42 5.14 5.31 8.86
100” 1.70 2.44 2.88 3.41 4.27 4.27 6.42 6.64 11.07
120” 2.05 2.92 3.45 4.09 5.13 5.13 7.70 7.97 13.28
150” 2.56 3.65 4.32 5.11 6.41 6.41 9.63 9.96 16.6
200” - 4.87 5.76 6.82 7.00 8.55 12.84 13.28 20.00
250” - 6.09 7.19 - - 10.68 16.05 16.6 20.00
300” - 7.31 8.63 - - 12.82 19.26 19.92 20.00

Features

DICOM simulation mode

Designed specifically for larger meeting rooms and lecture theatres, the EH503 includes a special DICOMsim mode that has been specifically tuned for viewing greyscale images, perfect for viewing X-rays and scans during medical training.*

*The EH503 is not suitable for use in medical diagnosis.

3D technology

Using the inherent speed of DLP® technology, Optoma Full 3D projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D. The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams to make them jump into life.

The EH503 supports multiple 3D formats from various devices such as PC, Blu-ray 3D™, Sony® PS3, Microsoft® Xbox 360 or 3D TV broadcast system.

Edge Blending Tools

No two projectors are completely identical. When performing complex, or even simple edge-blend projects using multiple projectors, it can be difficult to achieve good results if the images do not match. The EH503 incorporates the following features to ensure high quality and consistent results.

Colour matching

The EH503 has a full 3-axis colour matching system, which combined with accurate measurements can create seamless blends every time.

Brightness matching

The brightness of a projector will vary throughout its life. To correctly match multiple units, the EH503 has 10x lamp power steps between 80~100% full brightness.

Without
With

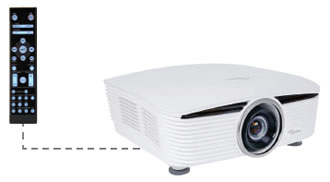

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Control

System integration control

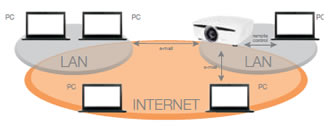

Multiple EH503 can be monitored over LAN and can also provide the user with an email message alert in case an error occurs or a lamp fails or needs to be replaced using Crestron Roomview. The web browser interface and full support for Telnet, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the EH503 to be controlled across a network, keeping you in control, wherever you are.

Global monitoring of all AV devices
Track projector lamp life
Email alerts and instant notifications- help desk requests, service reminders, device failure or theft
Event Scheduling

Ultimate control

Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.
Download Crestron RoomView® Express for free atwww.crestron.com/getroomview
Selected view by rooms, attributes or contacts

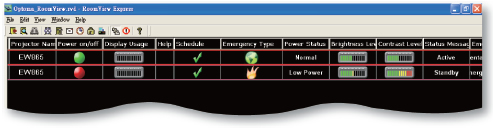

RoomView Express gives you the ability to simultaneously view more than 250 connected devices from a single screen. Customise RoomView to view by room name, locations and group.
Display power
Check on/off status of any projector.
Display usage
View a bar graph to monitor the percentage of available projector lamp life and set an alert to notify the services department when a replacement lamp should be ordered, before the lamp fails.
Schedule events
RoomView Express makes scheduling of recurring or one-time events easy. Setting RoomView to automatically power down at midnight throughout the week can save valuable lamp life and ensure security inside the facility.
Event log
Automatically generates log files, reports and charts to analyse ROI and budget allocation. Track device usage, call statistics and user history.

Green

We know that improving our products is the best way to reduce our impact on the environment. That’s why at Optoma, we design our products to have a long usable life, use fewer materials, ship with the minimum packaging and be free of all possible toxic substances. Naturally, energy efficiency and being recyclable are built in at the design stage. With each new product, we strive towards minimising our environmental impact.

Eco Friendly

Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.

Direct Power On
The projector will start up instantly when power is supplied to the Unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Signal Power On
The projector will power on when it receives a signal through one of the PC/video inputs. This ensures that the projector is only switched on when it is needed.
Auto Power Off
If after a pre-determined time the projector does not receive a signal, it will turn itself off automatically, conserving power and extending the life of the lamp.
Eco Standby Mode
Reduces energy consumption to less than 0.5W when the projector is not in use.
Eco AV Mute & Eco Sleep
Direct your audience’s attention away from the screen by blanking the image when no longer needed. When Eco AV-mute is enabled, or if no source is found after 60 seconds, the projector will automatically put the lamp into Eco mode, both saving power and further prolonging the life of your lamp.
